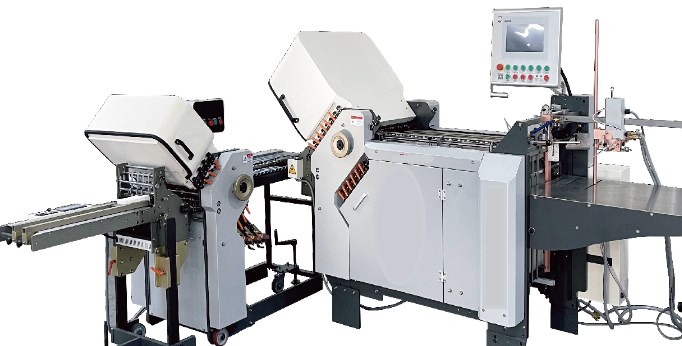

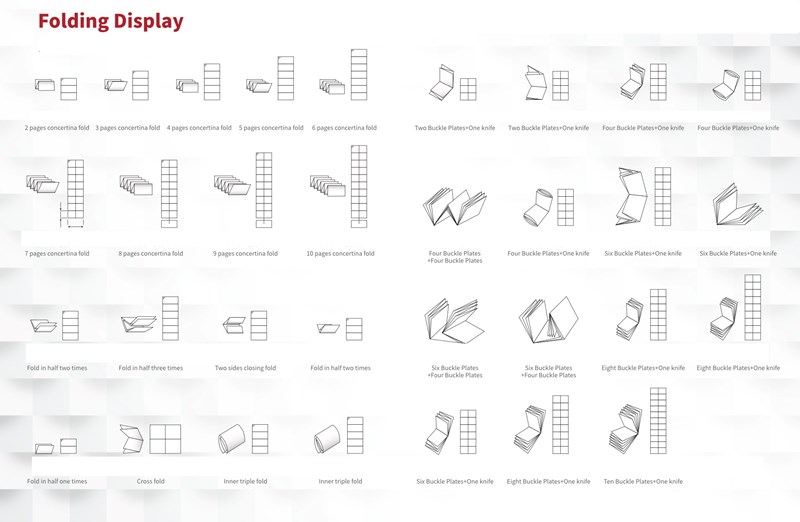

ዝርዝር፡ Master Fold 120 Miniature Folding for Pharmaceutical and Medium-Format Applications The Master Fold 120 is engineered to meet the most demanding requirements of the pharmaceutical and healthcare industries, where precision, compliance, and reliability are critical. Purpose-built for miniature folding and medium-format applications, it is the perfect solution for producing: Pharmaceutical package inserts Patient information leaflets (PILs) Medical dosing instructions Clinical trial documents Multilingual healthcare leaflets Packaging inserts and compliance documents With a minimum fold length of just 20 mm, the Maser Fold 120 is a specialist in compact pharmaceutical folds required for medical packaging. Its flexibility ensures that even the most complex folding jobs meet regulatory standards with unmatched accuracy. Performance Characteristics Folding range: up to 20 parallel folds in a single run. Automatic dual-control system for pile height management. High-performance sheet feeder for smooth paper transport. Three-hole suction rotor ensures precise sheet separation. Steel–PU folding rollers with spiral stripes: Non-slip, wear-resistant, rust-proof. Increased contact area by 75% compared to traditional rollers. PLC-based control system with stepless variable frequency speed regulation and overload protection. Sensitive sheet detection prevents double-sheet feeding and auto-stops for jams. Optional HMI (human-machine interface) for simplified operation and fast job setup. Supports scoring, perforating, and slitting for versatile applications. Belt transmission for smooth, low-noise operation. Optimized feeding angle design prevents paper wrinkling. Folding Types The Master Fold 120 supports a wide range of fold styles, making it ideal for pharmaceutical inserts and complex healthcare packaging. Concertina (Accordion) Folds 2 to 10 pages Buckle + Knife Combinations Two to Ten Buckle Plates + One Knife Four Buckle Plates + Four Buckle Plates Six Buckle Plates + Four Buckle Plates Classic Folds Fold in half (single, double, triple) Cross fold Gate fold (two sides closing) Inner triple fold (wallet fold) Roll fold (barrel fold) Technical Specifications – Maser Fold 120 Minimum Sheet Size: 60 × 100 mm Maximum Sheet Size: 520 × 1000 mm Minimum Finished Fold Size: 30 × 30 mm Maximum Finished Fold Size: 160 × 90 mm Paper Range: 35 – 200 g/m² Maximum Folding Thickness: 15 mm Maximum Folding Speed: 180 m/min Maximum Paper Pile Height: 550 mm Machine Power: 7.0 kW Air Pressure Requirement: 0.6 MPa Voltage: 380 V Net Weight: 1120 kg Overall Dimensions: 5050 × 1100 × 1500 mm Optional Configurations & Modules Parallel Knife (SD-X250) – Adjustable up to 830 mm Pressing Machine (SD-XP300) – 300 mm width, press thickness 1–20 mm, max pressure 9400 N Labeling Unit (optional) HHS Glue Gun System for folding and binding integration Binding Production Line (MF120 / 8H-F): Equipped with 2–6 nail heads Binding thickness up to 3 mm Middle knife (1 standard, 2 optional) Finished size: width 55–150 mm, height 60–520 mm Power: 10 kW Dimensions: 1500 × 8500 mm Key Advantages Miniature precision folding for pharmaceutical packaging compliance. Regulatory reliability – mark-free folds, consistent quality. Compact footprint with modular flexibility for expansion. Fast job changeovers with digital controls and operator-friendly interface. Ideal for both high-volume runs and small specialized jobs. The Maser Fold 120 delivers compact efficiency, regulatory compliance, and top-tier folding quality, enabling pharmaceutical printers, healthcare suppliers, and packaging manufacturers to achieve maximum reliability and added value in every folded product.
