弗莱索印刷机

描述：

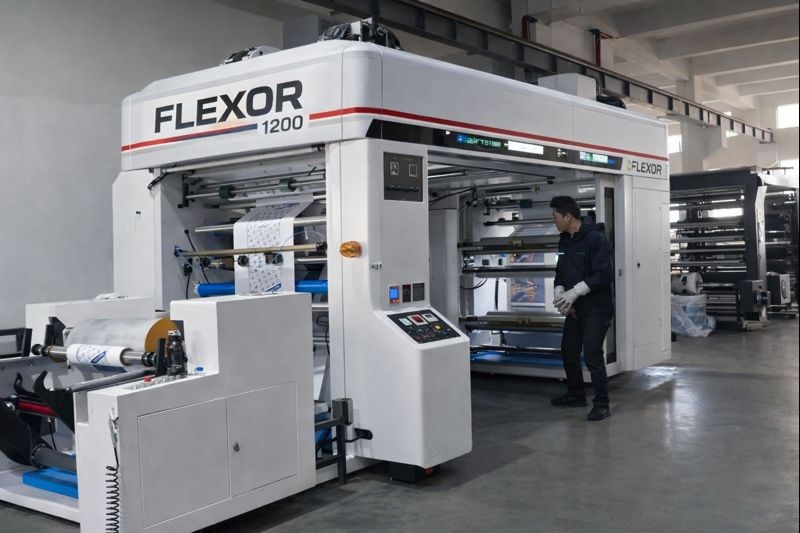

The FLEXOR Flexographic Printing Press is engineered with a rigid and robust industrial construction to ensure long-term stability, operator safety, and consistent high-quality printing. Designed for high-speed operation with minimal vibration and low noise, FLEXOR delivers excellent print accuracy while reducing energy consumption and minimizing industrial downtime.
Its power-saving design, combined with reliable components and intelligent control, makes FLEXOR a dependable solution for modern packaging and paper converting industries.
Ease of Operation
Simple and intuitive operation
Fast setup and adjustment
Quick size changeovers in just a few minutes
Easy to operate with minimal training
Stable performance even at higher speeds
Printing Capability
The FLEXOR press is designed for basic four-color flexographic printing, using ceramic anilox rollers and a fully integrated system that ensures high registration accuracy and consistent ink transfer.
PLC-controlled system for precision and reliability
Suitable for a wide range of roll materials without loss of print quality or efficiency
Compatible with water-based and solvent-based inks
Application Areas
The FLEXOR printing press is ideal for producing eco-friendly packaging products, including:
Paper cups and paper bowls
纸袋
Food and takeaway packaging
Widely used in:
Bakeries
Pharmacies
Fast-food restaurants
Coffee shops
超级市场
Retail outlets
FLEXOR 1000 – TECHNICAL SPECIFICATIONS
1) Machine Specifications
Max Material Width: 1000 mm
Max Printing Width: 960 mm
Material Compatibility
纸张：17–350 克/平方米
无纺布：15–120 克
PVC：10–120 微米
光阻：10–100 微米
双向拉伸聚丙烯薄膜：10–100 µm
聚乙烯：15～150 微米
NY：10–120 µm
PET：10–100 µm
碳氢化合物聚丙烯（CPP）：10–100 微米
PP Woven: 0.01–5 mm
Printing Colors: 4 Colors
Printing Length: 280–1200 mm
(One 400 mm printing length set provided free of charge)
Printing Speed: 10–120 m/min (depending on material)
Power Supply: 380V, 3 Phase, 50Hz
Plate Thickness Options
Resin plates: 1.14 / 1.7 / 2.28 / 2.54 / 2.94 mm
Rubber plate: 3.94 mm
2) Unwind Unit
Max Unwind Diameter: 1200 mm
Unwind Type: Pneumatic auto loading
EPC System: U-type ultrasonic
Core Diameter: 76 mm
Auto Tension: Magnetic powder, 10 kg
3) Traction Unit
Aluminum rollers with chrome-plated rollers
Traction Zones: 2 zones
4) Printing Unit
Drive System: Belt-driven, gears located outside machine base
Register Adjustment: Manual + Motorized (PLC controlled)
Up / Down
Left / Right
Overprint Accuracy: ±0.2 mm
Roller & Ink System
Ceramic Anilox Rollers: 4 pcs (Ø 106.2 mm)
Printing Cylinder & Anilox Movement: Manual + hydraulic, auto horizontal
Chamber Doctor Blade: 4 pcs (Teflon treated)
Ink Trays: 4 pcs (Teflon treated)
Ink Pumps: 4 pcs (Double diaphragm)
Printing Stations: 32 pcs
Bottom Roller: Chrome treated
Ink Type: Water-based or solvent-based ink
5) Heating & Drying System
Heating Method: Blowing first, then heating
加热功率： 30 kW
Inverter Power: 3.7 kW
6) Electrical Components
Main Motor: 3.7 kW (Inverter controlled)
Ink Transfer Motors: 3.7 kW × 4 pcs
7) Rewind Unit
Max Rewind Diameter: 1200 mm
Rewind Type: Pneumatic auto unloading
Tension Control: Magnetic powder, 10 kg
Rewind Motor: 3.7 kW inverter reducer motor
Air Shaft: Ø 76 mm
香蕉滚筒：含
8) Automatic EPC Device
9) Camera / Video Inspection System
相机品牌: PUSAI
10) Standard Spare Parts Included
Tool box – 1 set
Screwdrivers (1–10#) – 1 pc
Oil gun – 1 pc
Inner hexagon spanner – 1 set
Switches & buttons – 2 pcs
Contactors – 2 pcs
Heating tubes – 2 pcs
Relays – 2 pcs
Printing cylinder bearings – 2 pcs
Air faucets – 2 pcs
Anilox roll gear – 1 pc
One-direction bearings – 2 pcs
Chamber doctor blade rubber seals – 10 pcs
11) Machine Dimensions & Weight
Machine Dimensions (L × W × H): 6.5 m × 2.7 m × 3.0 m
Machine Weight: Approx. 4,500 kg
