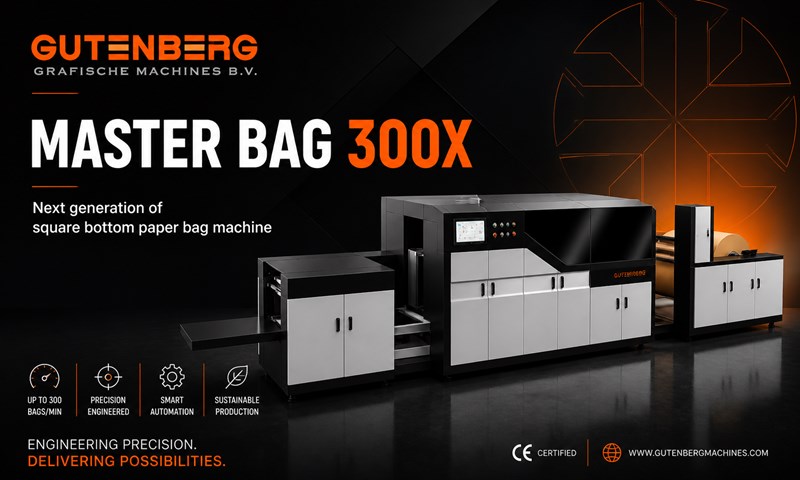

MASTER BAG 300X

опис:

The Master Bag 300X is a cutting-edge, roll-fed square bottom paper bag machine designed for high-volume manufacturing. Ideal for the food industry, retail packaging, and paper bag manufacturers, this advanced machine produces durable, eco-friendly bags without handles efficiently and reliably.
Why the Master Bag 300X Stands Out
Fully Automated Operation: Integrates paper feeding, tube forming, cutting, and bottom forming into a seamless process, reducing labor costs and downtime.
Precision and Accuracy: Equipped with a photoelectric detector, ensuring every bag meets exact dimensions, even with very thin paper.
Advanced Japanese Control System: Powered by YASKAWA servo motors, providing stable operation and consistent high-quality output.
Ключові характеристики
Paper Material Feeding & Conveyance
Roll-fed with automatic lifting function for quick paper roll changes
Unwind air shaft with hydraulic lifting control
Automatic tension control for smooth and consistent feeding
Paper Bag Forming
Precision gluing and tube formation
Four-cornered square bottom forming with accurate glue application
Bags ready for collection or downstream processing
Finished Bag Collection
Presses and conveys finished bags smoothly
Integrated automatic counting for inventory and packaging management
Технічні характеристики
Specification Details
Bag Dimensions (L × W × Bottom Width) 280–530 mm × 150–330 mm × 70–180 mm
Paper Thickness Range 60–150 gsm
Maximum Production Speed Up to 200 bags per minute
Paper Roll Width 470–1050 mm
Paper Roll Diameter Up to 1500 mm
Machine Power 38V, 8 kW
Machine Weight 8,000 kg
Machine Dimensions (L × W × H) 9.5 × 2.6 × 1.9 meters
Benefits of the Master Bag 300X
High-speed production for large-scale bag manufacturing
Reliable, precise output with advanced sensors and servo control
Roll-fed system minimizes downtime during paper roll changes
Consistent food-grade and retail packaging quality
Supports eco-friendly kraft paper production, helping businesses achieve sustainability goals
Ideal For
Flour mills & food packaging companies
Retail packaging manufacturers
Paper bag producers looking to expand capacity
Businesses aiming to replace plastic bags with sustainable alternatives
Upgrade your paper bag production with the Master Bag 300X – efficiency, precision, and sustainability in one machine.
