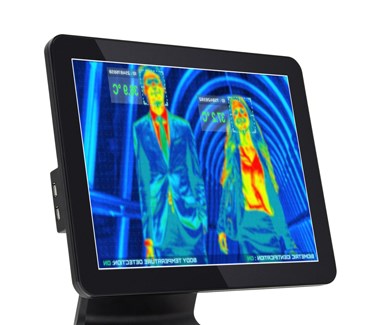

THERMOCAM Thermal imaging camera

Descripción:

Thermocam is an ideal equipment to conduct temperature screening safely and efficiently for those who may be potentially infected with flu.

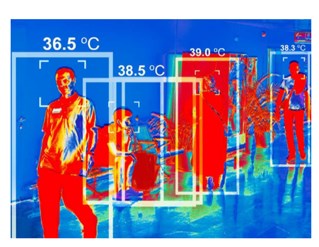

with its embedded deep learning algorithm, overtemperature snapshot, Thermal imaging camera ,it’s a Public Fever Detector . it instantly clearly and quickly detects multi-person temperature measurement from long distance with Alarm function preventing from overlooking and recording abnormal temperature.to segregate those who might be infected.

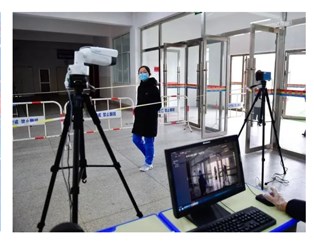

Fast temperature measurement, Widely used in Airport, shopping malls, hotels, subways, stations, hospitals ,school and all public places which can effectively avoid cross infection, greatly reduce the risk for security personal with high frequency contact

Especificación:
Operating 40°~80°C imaging
Temperature 10°~75°C temperature measurement
Power Via USB 5V+-10%
Power Consumption normal <0.85W
When the shutter opened and calibrated <1.6W

Infrared Thermal Imaging
Sensor Silicon oxide uncooled infrared focal plane detector
Solution 256 x 192
Angle of View 57°
Wave Band 8µm~14µm
Noise Equivalent Temperature Difference =60mk

Visible light
Sensor 720P
Solution 1 mega pixel
Angle of View 60°
Resolution 1280 x 720

Temperature Measurement Parameters:

Range -15?~+150?
Accuracy ± 0.5 ?
(plus bold: accuracy ± 0.3 ?)
(Body temperature 33~40?)
±1? (over body temperature)

Area
full-screen or 6-zone temperature measurement,
independent setting of alarm type

Advised Distance: 0.5m~3m

Abnormal Temperature Alarm

The alarm type: higher than the highest temperature / below the lowest temperature / between / outside
Support alarm on high temperature and low temperature threshold setting
Support time period configuration for abnormal temperature alarm
