More professional industrial CO2 Fly high stability laser machine.

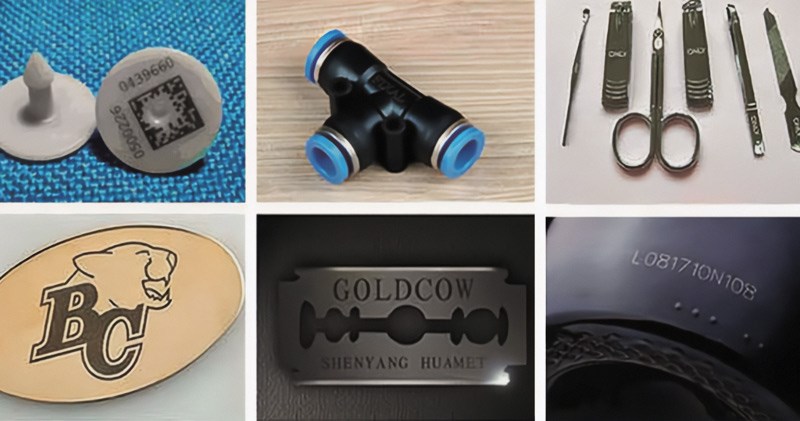

CO2 lasers typically used for beverage bottles including PET, PVC, and also for marking packaging card and clear glass.
Fly CO2 capable of marking products on faster production lines or with more complex coding or substrate requirements such as metals like steel and aluminum, and medication blister pack printing.
Advantages - Laser Technology Refined Application of the system can fully or partially replace the traditional inkjet coding, especially for the new material which inkjet cannot coding and remain permanent traceable code.
- LCD Touch Screen Software installed on the LCD touch screen. The marking speed, power, frequency... all can be adjusted on the screen. It s very convenient.
- Scanner Head Adopt advanced digital high speed scanning, galvanometer, small volume , quick speed, good stability, performance reached the international advnaced level.
- High Quality Alloy Case The laser source, controller card and other electric circuits all setup in the case. Also there are exhaust fan in the case.
- Lifting Handle Design Shake Hand Wheel Laser Focus Distance can be adjusted easily. Operation is simple and convenient.
Parameters • Laser Power 20W / 30W / 50W (Optional) • Laser Source Raycus German IPG Fiber Laser • Laser Wavelength 1064nm • Beam Quality M2 < 1.4 • Modulation Frequency 20kHz~110kHz • Marking Range 30x30 or 300x300mm can be optional • Carving Speed 0-12000mm/s (adjustable) • Carving Depth 0.01~0.4mm (10W) or =1.0mm (50W) • Focusing Mode Support for Automation or Manual • Marking Speed 1500-2000 characters/Min • Minimum Line Width 0.002mm • Minimum Characters 0.15mm • Repeatability Accuracy ±0.002mm • Cooling Method Air Cooling • Use Environment IP4 Clean, Dustless or Less Dusty • Laser Type Pulse or continuous • Control Software Authorization EZCAD marking control software • Graphic Format Supported bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt... • Laser Indicator Double Red Dot Pointer • Operating System Win98 / Win2000 / WinXP / Win7 / 8/ 10 • Working Temperature 0-35?, 90% or Humidity • Power Consumption = 550W • Electricity Demand AC 110V - 240V ±10%, 50 HZ / 60 HZ
Technical Data • Carving Speed 9000mm/s • Voltage 110V - 240V • Power 20W / 30W / 50W • Packing Weight 120Kg • Total Weight 900 x 800 x 1060 mm
