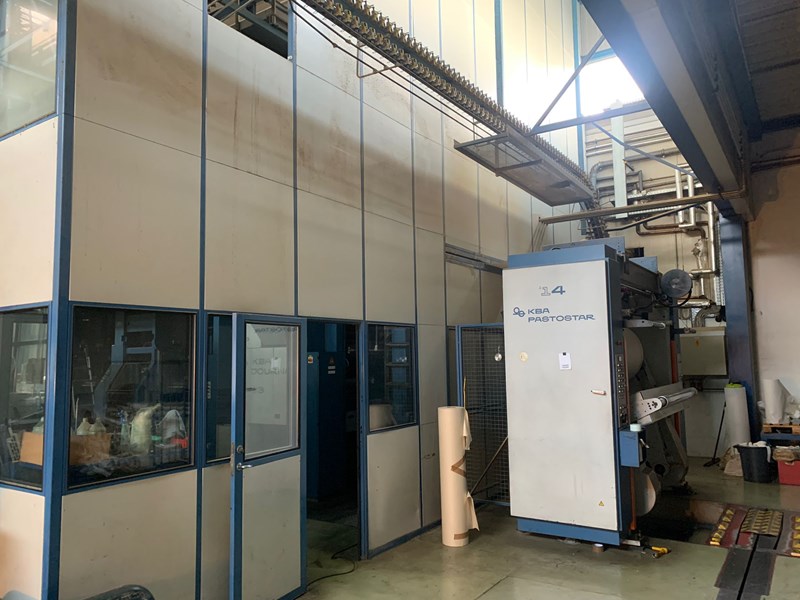

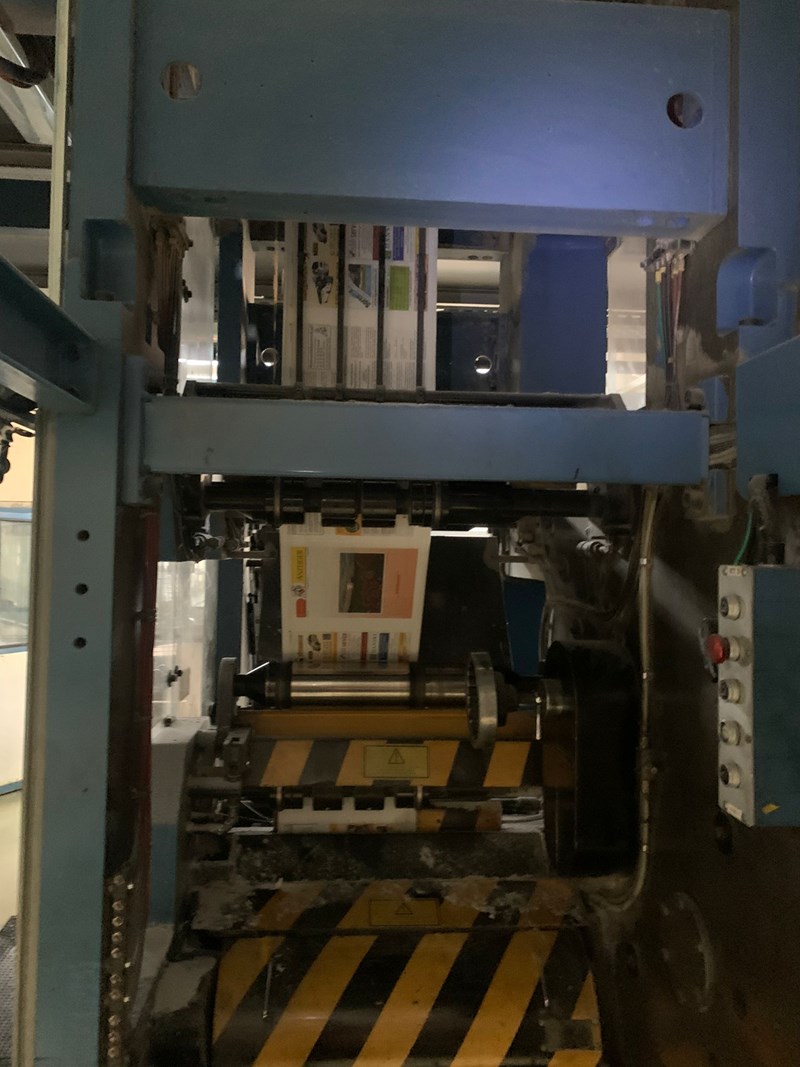

Format: 315x470 mm (Berlin format) Printing machine: KBA Journal Configuration: 3 four-high towers with H printing units Folders: 2 KBA KF 64 (cylinder system 2:3:2) Reel splicer: 4 beltless reel carriers KBA Pastorstar Drive technology: Shaftless DRIVETRONIC Production output max.: 32,500 single production / 65,000 double production copies/h Colors: 48 pages in Berlin format, all pages in 4c 96 pages tabloid all pages in 4c Type area single page: 280 x 420 mm (285 x 440 mm max.) Type area panorama: 596 x 420 mm (596 x 440 mm max.) Panorama pages can be placed on all double pages. Paper: uncoated paper 45 gsm to 60 gsm Data transfer: FTP server Exposure: CTP direct exposure to printing plate Screen frequency: 40 – 48 100 lpi/ 1270 dpi for exposures Standard: IFRA standard is aimed at Inserting systems: 1 Ferag drum with Ferag RollStream with 15 insert stations 1 Ferag drum with 5 insert stations for inserts or brochures in newspapers
