GUTENBERG PLATINE

Description:

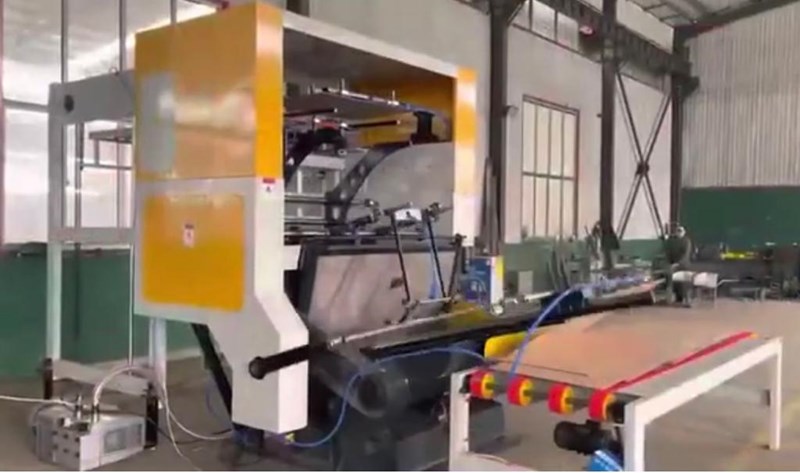

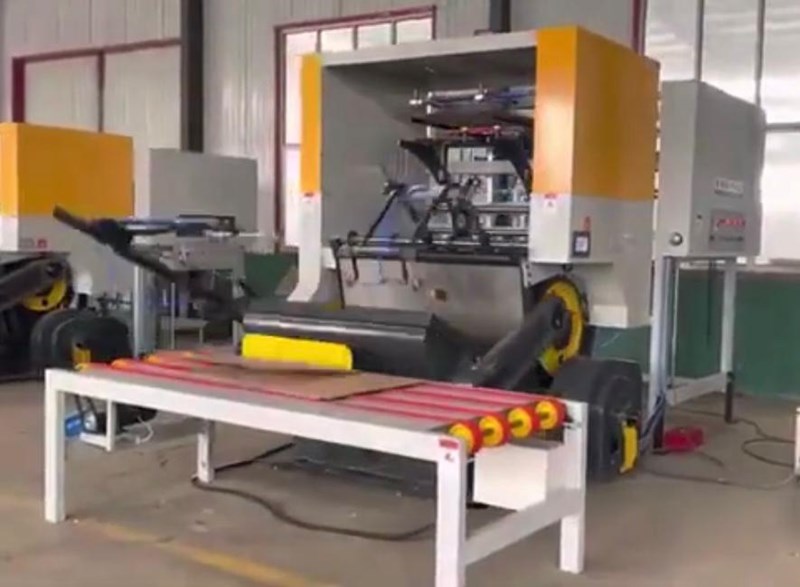

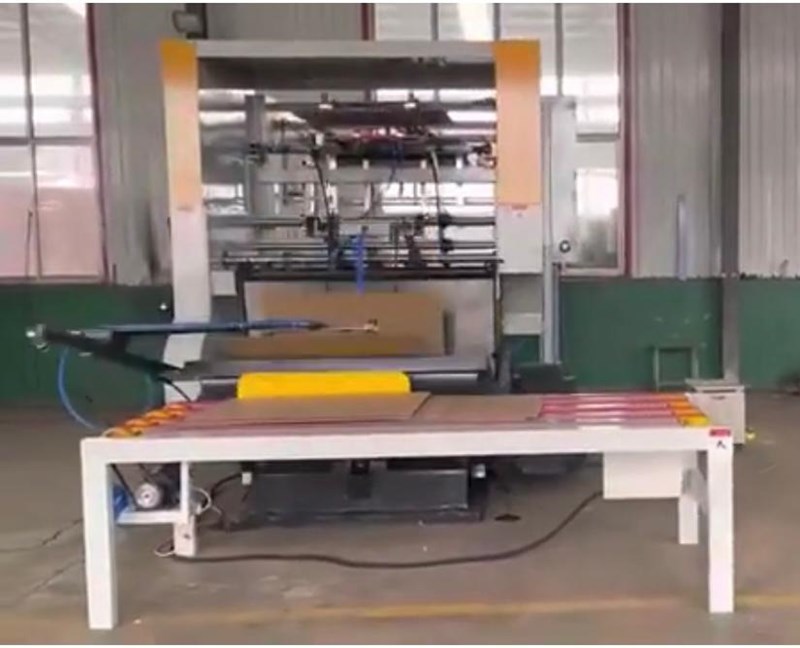

GUTENBERG PLATINE MODEL 1100
Max feeding size 1050X800
Min feeding size 550X410
Die cutter precision 0.75
speed 23/min
Motor power 4.0kw

Machine designed for Cutting, Punching, Embossing, and Creasing, on Carton Boxes and Corrugated Sheets, with Pressure adjustment, through independent impression can be easily read on the scale from each side, to achieve perfect setting, machine has a quite silent running.
This Heavy Duty Die Cutter Press provided a high Safety level
All these FEATURES MAKE GUTENBERG PLATINE most reliable compared to the other


Performance
-the full-automatic flat die-cutting machine is the most ideal feeding mechanism for the cartooning machine. Runs synchronously with the feeder and delivery.
- simple in structure and easy to adjust.
- Electronic counter which is convenient for counting.
-bell is used for warning when the equipment is started to improve the safety warning.
- When the cardboard is fed into the cartooning machine, the cardboard is corrected by the movable side stop gauge, which improves the paper feeding accuracy.

- wallboard and frame of this machine are mainly made of the main steel plate and 100X50 square tube, which is reasonable in structure and durable.
- Most transmission shafts adopt straight optical shafts.
- gear is quenched with 45 # steel, which is durable and wear-resistant.
- suction nozzle is a special suction nozzle for flat die cutting machines, with large suction and stable paper suction.
- vacuum pump adopts a 140B oil-free vacuum pump, and the air pipe uses a 16mm air pipe, which ensures the normal operation of the suction nozzle.
- suction nozzle action time control valve adopts the latest adjustable time cam control valve developed by our factory, which is reasonable in structure, sturdy and durable, not afraid of dust, and has a large ventilation capacity, which greatly exceeds the performance of the rotary air distribution valve paper feeding Feida head, and is intended to fill the defects of the rotary air distribution valve.

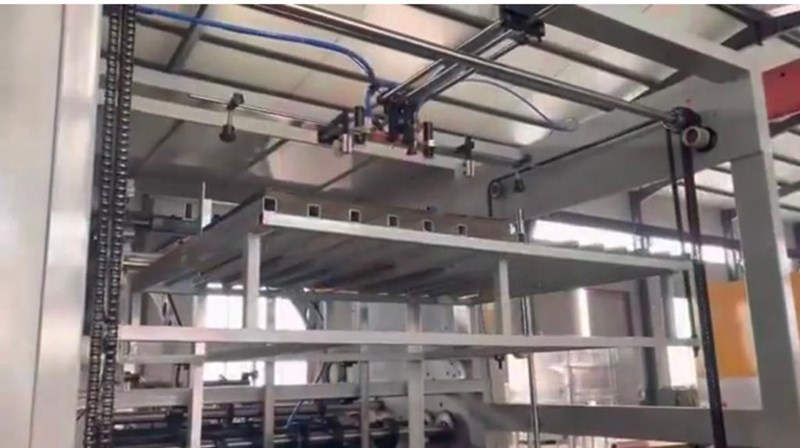

-paper feeding section is mainly used to stack cardboard and adjust the position of cardboard.
- paper feeding section puts the cardboard in the paper feeding section into the cartooning machine and corrects the position.

- feeding section discharges the felt cardboard onto the conveyor belt.
paper feeding belt sends the cardboard out of the guardrail.
the vacuum air pump provides adsorption power for the manipulator suction nozzle.
- safety guardrail encloses the paper feeding area of the machine to prevent personnel from entering the dangerous
